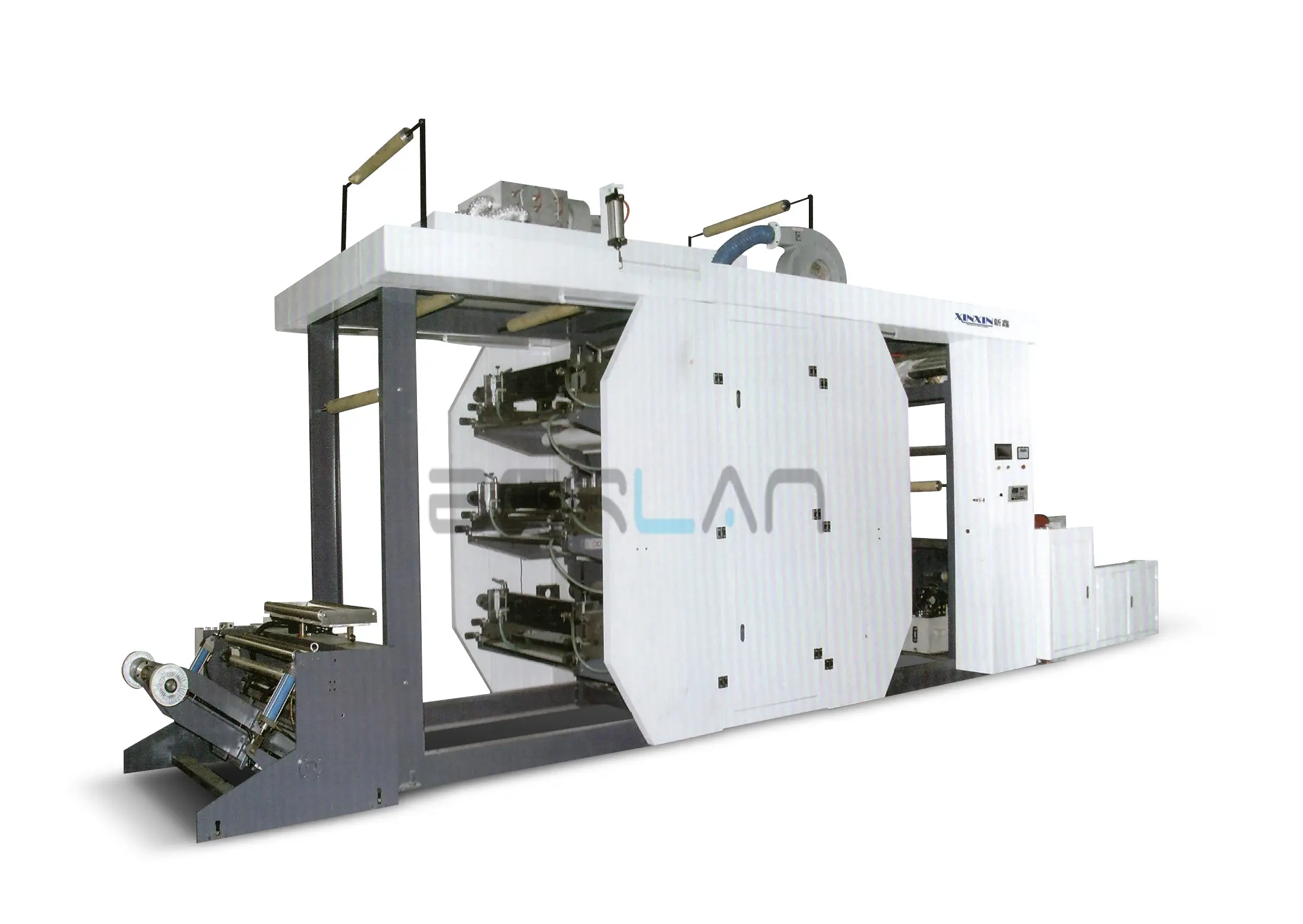

ZYT-6 FLEXO PRINTING MACHINE

Products structure picture:

The main motor of this machine uses a synchronous belt drive with a hardened gear gearbox. Each printing unit uses a gearbox for its synchronous belt drive, high-precision planetary gearbox (360° plate adjustment) gear-driven impression roller, The long cooling distance after printing allows the ink to dry easily and the material to cool thoroughly.

Control Part:

Main motor Inverter

PLC touch screen display for controling whole machine

Geared motors, 6 sets of individual ink conveying units.

Unwinding Part:

Single work station

Shaftless

Hydraulic clamping, hydraulic lifting of material, hydraulic adjustment of discharge width, can be adjusted left and right.

Magnetic powder brake auto tension control.

Photoelectric-controlled pass-through deviation correction control

Control Part:

Main motor Inverter

PLC touch screen display for controling whole machine

Geared motors, 6 sets of individual ink conveying units.

Unwinding Part:

Single work station

Shaftless

Hydraulic clamping, hydraulic lifting of material, hydraulic adjustment of discharge width, can be adjusted left and right.

Magnetic powder brake auto tension control.

Photoelectric-controlled pass-through deviation correction control

Drying Part:

 Adopt with external heating pipe, temperature display, electric current control and centrifugal blower.

Rewinding Part:

Back to back friction method rewinding

Pneumatic tension control

2.2kw motor Vector Control Inverter

3 inch air shaft

Hydraulic lowering the material
