FZ-B Paper Slitting and rewinding machine
Berlan Machinery Three Paper One Film Valve Bag Production Line

FZ-B Paper Slitting and rewinding machine

Engineered for high-performance paper converting operations, the FZ-B Paper Slitting and Rewinding Machine combines precision slitting, stable tension control, and efficient surface rewinding technology to deliver exceptional roll quality. Its shaftless loading system, automatic unloading mechanism, and robust cast-iron construction help maximize productivity, reduce labor requirements, and ensure reliable operation in demanding industrial environments.

HIGH-PRECISION SLITTING Equipped with 17 sets of doubl...
HIGH-SPEED PRODUCTION Operating speeds of up to 250...

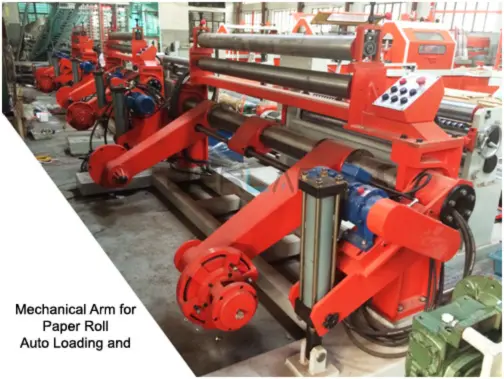

SHAFTLESS PAPER LOADING SYSTEM The shaftless roll clamp and l...
SUPERIOR REWINDING QUALITY Single-shaft surface rewinding...
Request a Quote Contact via WhatsApp
Consult Now
Official Warranty
Free Consultation
Worldwide Shipping
Features & Parameters

Features & Parameters

FZ-B Paper Slitting and rewinding machine

ParameterSpecification
Paper Grammage / Weight60 – 550 GSM
Base Paper MaterialKraft Paper, Bobbin Paper
Maximum Master Roll Width1,600 mm
Minimum Slitting Width70 mm
Maximum Master Roll Diameter1,300 mm
Maximum Rewinding Roll Diameter1,300 mm
Machine Speed0 – 250 m/min
Rewinding MethodSurface Rewinding

Main Machinery Parts Material and Instruction:

  1. 17 sets double-knife are made of tool steel.
  2. 1 sets rewind shaft for 3 inch paper core.
  3. Main roller wheels are made of seamless steel pipe, surface painting with hard chrome and hard coating.
  4. Adopt Japanese NSK bearings. All driving rollers is performed in better driving effect after balance tested.
  5. Machine body adopts cast iron pouring, with stable structure, good vibration absorbing capability, reduce machine vibration.
