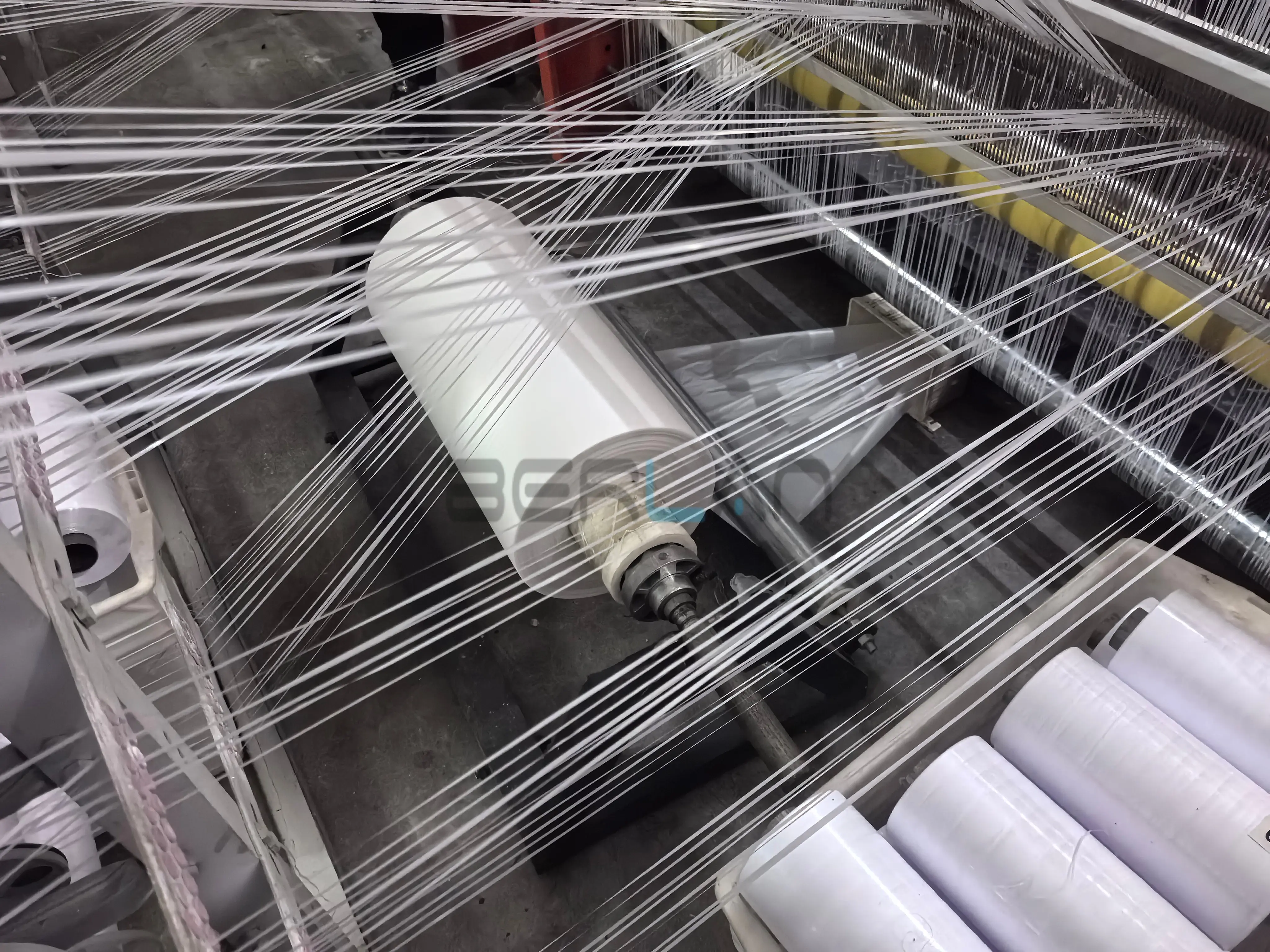

Circular Loom with Liner Reel
Berlan Machinery Inner laminating woven bag production line

Circular Loom with Liner Reel

The High-Speed Six-Shuttle Circular Loom is designed for efficient production of high-quality woven tubular fabrics for valve bags, cement bags, chemical packaging, and industrial applications. Featuring flat cam technology, swing-arm roller drive, and advanced PLC control, the machine delivers smooth, stable, low-maintenance operation with up to 20% energy savings. It supports weaving speeds of up to 180 RPM and tubular fabric diameters of 350–800 mm, providing a reliable, high-productivity solution for large-scale woven bag production.

EFFICIENT WOVEN BAG PRODUCTION The machine is precision-engin...
PRECISION ENGINEERING & ENERGY EFFICIENCY The upper and lower door rings...
ADVANCED PLC CONTROL SYSTEM Equipped with a PLC system spe...
HIGH-SPEED PERFORMANCE & RELIABLE OPERATION The PLC synchronously controls...
Request a Quote Contact via WhatsApp
Consult Now
Official Warranty
Free Consultation
Worldwide Shipping
Features & Parameters

Features & Parameters

Features:

1. The machine is precision-engineered and utilizes flat cams and swing-arm roller drives, ensuring smooth and effortless operation. It requires no lubrication and saves 20% in energy consumption.

2. The upper and lower door rings are made of thickened steel rings produced through precision casting.

3. Equipped with a PLC system specifically designed for circular knitting machines and an intelligent touchscreen, featuring error alerts and displays for speed, production output, and other functions.

4. The PLC synchronously controls the main motor, yarn feeding, lifting, and winding.

Technical Spesification:

SpecificationDetails
ModelHJ-GXYZJ-6/800
Number of Shuttles6
Weaving Fold Diameter350–800 mm
Maximum Number of Warp Threads720
Maximum Weft Diameter110 mm
Machine Speed230 RPM
Weaving Speed140–180 RPM
Main Motor Power3 kW
Power Consumption2.7 / 3.8 kW
Start-up Time≤ 5 Seconds
Machine Weight1,800 kg
Dimensions (L × W × H)8,600 × 2,300 × 3,100 mm
